HL-CONT Compact sewage treatment plants, or marine sanitation devices, are optimised for the common operating scenarios for units in the capacity range of up to 3000 litres/day in the marine industry. They offer maximum performance and reliability in the smallest and lightest package. Being a true HAMANN sewage treatment plant, the HL-CONT Compact features stainless steel construction to the highest standards and top-quality components throughout. This unit covers all the essential tasks of a sewage treatment plant as part of the sewage system on board and it does so in a truly compact package at lower costs. For sewage treatment plants offering more customisation options, please take a look at our HL-CONT PLUS range.
CONTACT OUR SALES TEAM
PHONE +49 (0)4165 22 11 100
E-MAIL sales@hamannag.com
KEY FACTS HL-CONT Compact
IMO & USCG CERTIFICATION
HAMANN HL-CONT Compact sewage treatment plants, or marine sanitation devices comply with the regulations for most use cases: The IMO‘s MEPC.227(64), excluding section 4.2, and US 33 CFR 159 (US Coast Guard Type 2 MSD).
OPTIMISED PACKAGE FOR BASIC SCENARIOS
HL-CONT Compact plants are optimised for the most common operating scenarios in their class. They offer the renowned HAMANN performance and quality at a lower cost.
COMBINED BLACK WATER & GREY WATER TREATMENT
As all HAMANN plants, HL-CONT Compact systems are designed to treat black water and grey water as a sewage mixture in the same process. This benefits the performance and reliability of the sewage treatment system as well as the environment.
EXTRA SMALL & LIGHT WITH ADAPTABLE LAYOUT
The HL-CONT Compact 0125 is the smallest and lightest sewage treatment plant, or marine sanitation device with these performance characteristics and full IMO, USCG and EU MED certification available on the market. It can be set up in two different layouts to suit different mounting positions.
EASE OF OPERATION & LOW MAINTENANCE
Routine functions on HAMANN plants are fully automatic and no specialised skills are required to operate them. Our technology eliminates the need for filters and membranes, which would require a lot of work for regular cleaning and replacement. Routine maintenance on HAMANN plants can be carried out quickly and easily by the crew on board. The open design allows instant access to all components for inspection and service purposes.
HL-CONT Compact MAIN SPECS
PLEASE NOTE: Measurements given here are based on the version with IMO/MED certification only. Measurements of versions with additional USCG certification may be different. This information is not to be used for design purposes. Subject to change without notice! The detailed technical specifications and all information on the scope of delivery are given in the product specifications of the respective plant model. Please contact our sales team via sales@hamannag.com.
* Basic measurements of main unit
TWO LAYOUT OPTIONS FOR THE HAMANN HL-CONT Compact
The HL-CONT COMPACT 0125 sewage treatment plant, or marine sanitation device, is available in two alternative layouts, giving even more flexibilty for installation: Layout A with shorter width but more depth and layout B with minimum depth, e.g. for mounting on walls. On delivery, all units are set up in layout A and can be quickly and easily converted by the customer if desired.

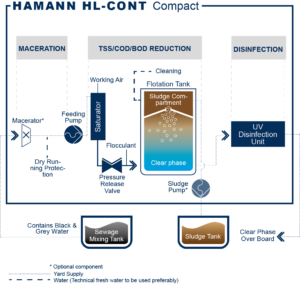

HAMANN HL-CONT Compact SEWAGE TREATMENT TECHNOLOGY
PREPARATION:
CREATING THE SEWAGE MIX
HAMANN HL-CONT Compact sewage treatment plants are designed to process both blackwater and greywater as a sewage mixture. This mixture is created in the sewage mixing tank from which it is pumped into the sewage treatment plant. Depending on the tank configuration on board, greywater and/or blackwater are transferred into the sewage mixing tank to create the sewage mixture. When the filling level in the sewage mixing tank reaches a predefined level, the feeding pump of the sewage treatment plant starts to operate and the treatment process is initiated.
MACERATION
The sewage mixture from the sewage mixing tank is first run through a macerator to chop up solid and fibrous components.
TSS/COD/BOD REDUCTION
By means of our Dissolved Air Flotation (DAF) technology, HAMANN HL-CONT Compact sewage treatment plants separate the suspended solids (TSS) and reduce the chemical (COD) and biological (BOD) oxygen demand. The sewage is enriched with air under a pressure in the saturator. After being discharged into the flotation tank through the pressure release valve, the excess air forms micro bubbles. A flocculant is added in order to let air bubbles and susupended particles form larger flakes. These flakes float upwards, creating a sludge foam on the surface and leaving the clear phase in the lower part of the flotation tank. The sludge foam spills into the sludge compartment and is subsequently fed into the ship‘s sludge tank.
DISINFECTION
The already largely purified sewage is finally exposed to UV radiation to degrade the DNA of bacteria and microorganisms, rendering them incapable of reproducing and infecting. After this finishing step, the treated sewage from the HAMANN HL-CONT Compact sewage treatment plant is safe to be discharged overboard (if permitted).
